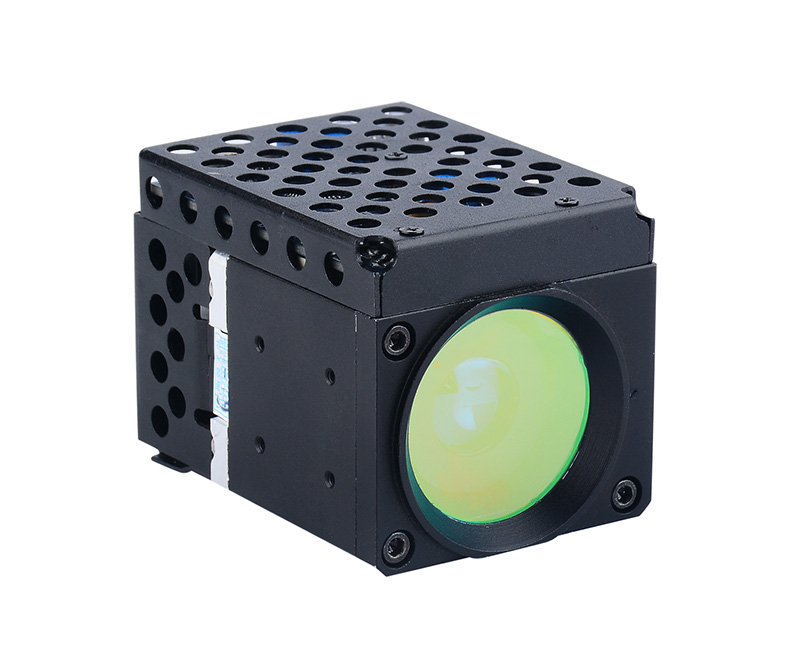

1000m 808nm IR VCSEL Array Laser Illuminators LL2001-0160-xxxCAP

Description

The laser illuminator is the minimum size one to illuminate up to 1km globally. And it is of high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, and users can call the instruction to operate conveniently in use.

Features

■ Self-developed high performance VCSEL chip, no attenuation
■ High efficiency up to 40% @25°C, >35% @ 50°C
■ VCSEL chip, wide operating temperature -40-+85°C
■ VCSEL array chip with large emission area, good safety
■ Self-developed high performance VCSEL chip, no attenuation
■ Continuous beam angle zooming electrically
■ Illumination over 1000m range
■ High reliability, lifetime up to 50000hrs
■ Global Minimum size with the compared performance
■ RS232, RS485, TTL interface optional
■ Negligible off-axis divergence,easy to collimate with camera lens
■ Uniform beam intensity, speckle free
■ Operating state memory
■ Presetting position
■ Low heat, high efficiency

Applications

■ Security surveillances

■ Automobile nightvision (ADAS)

■ Machine vision

■ Gesture recognition

■ Display

■ Medical applications

■ Military applications

Specifications
