Wavelength:650nm,635nm
Output power:1-100mW
Beam Divergence:0.1mrad ~ 0.6mrad
Operating Voltage:DC3V-5V
Line thickness: Less then 2mm at 5m
Fan angle:10-120 degree
Operating Temperature:-10℃～70℃
Storage Temperature:-30℃～80℃

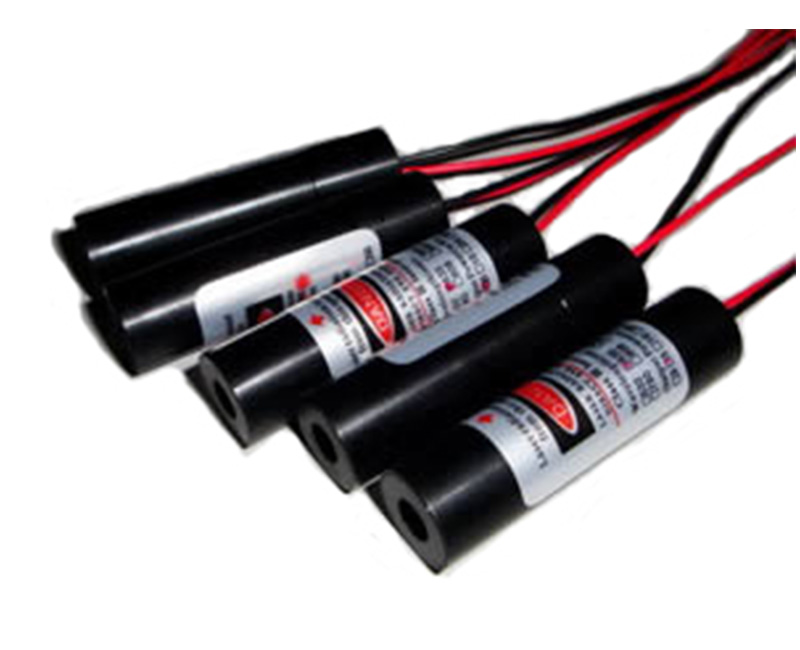

Red cross line laser module specifications:
Wavelength: 650nm,635nm
Output power:1-100mW
Beam Divergence:0.1mrad ~ 0.6mrad
Operating Voltage:DC3V-5V
Line thickness: Less then 2mm at 5m
Fan angle:10-120 degree
Operating Temperature:-10℃～70℃
Storage Temperature:-30℃～80℃
Dimensions:Φ12×45mm,Φ16×60mm
MTTF: 8000 hours
Characteristics:
Cross laser module include: high-quality laser diode,optical glass lens, driver circuit and housing
Better line quality
High reliability, high stability, long life,low price
Applications:
Machine vision
Industrial inspection
Industrial marking devices
3D contour mapping
Positioning & visualization
Biomedical
High-end alignment
Laser targeting devices and so on.
